Numbered Product Specifications

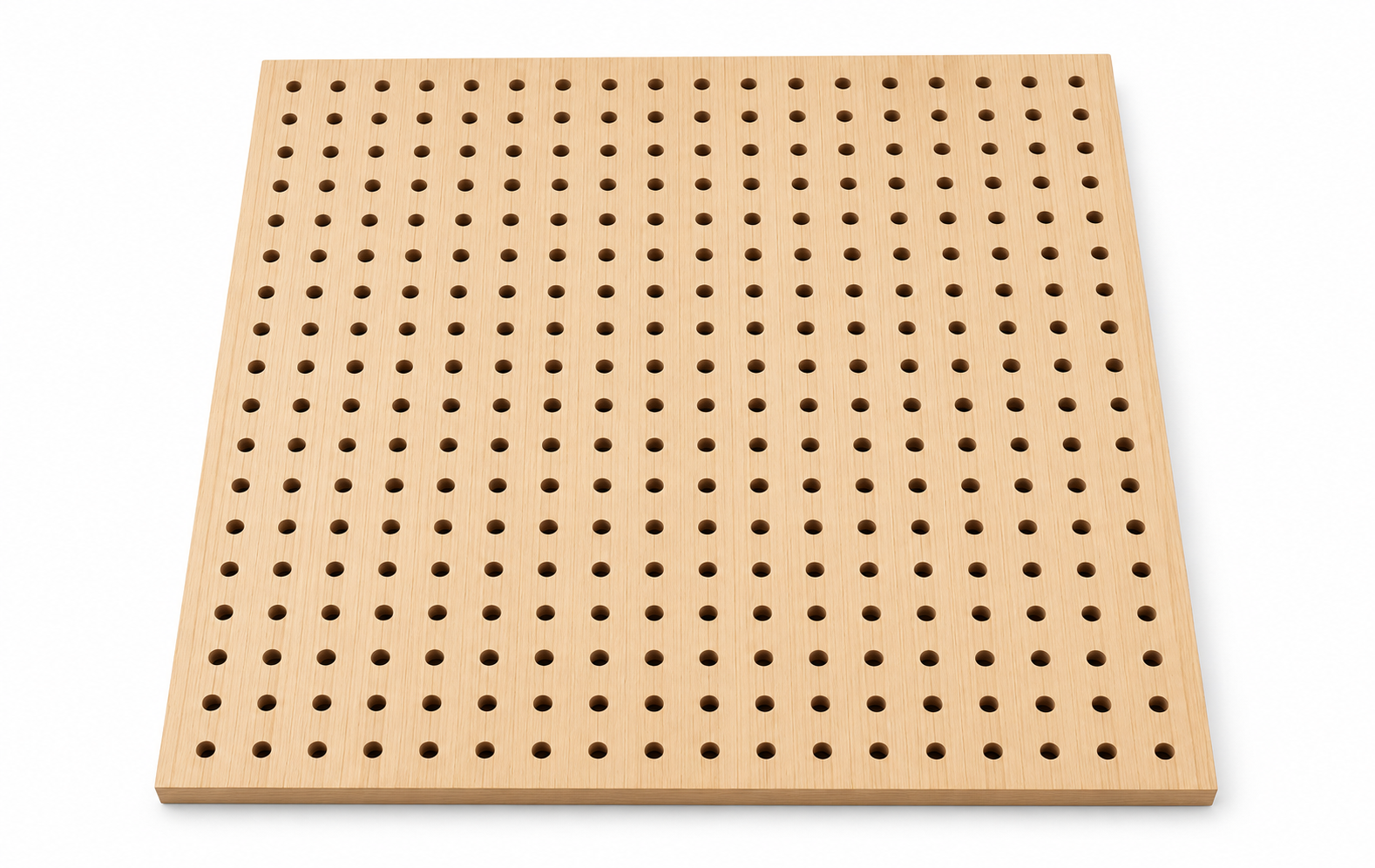

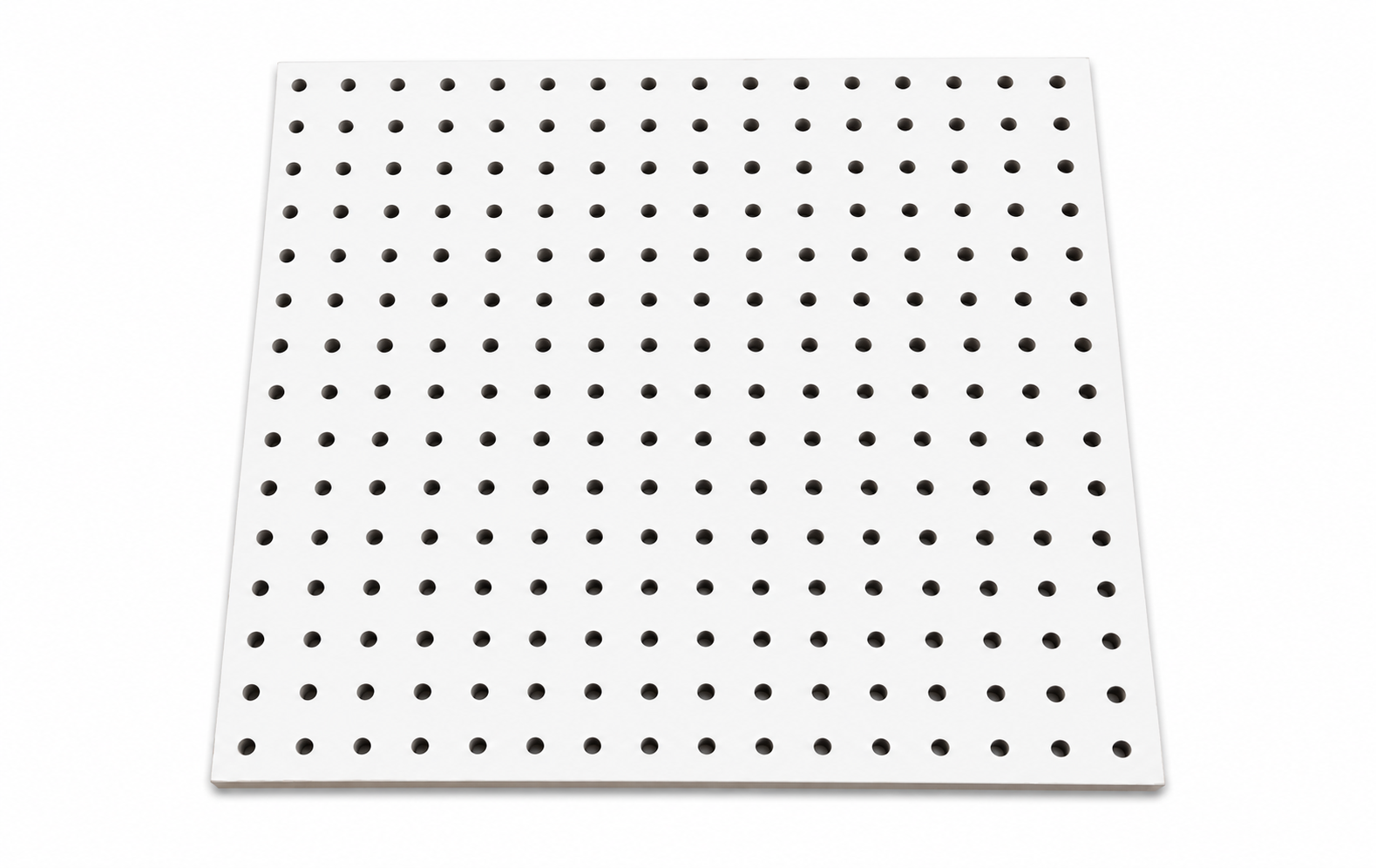

1. Product Name: Wooden Perforated Acoustic Panels
2. Brand: Hui Acoustics
3. Manufacturer: Guangzhou Hui Acoustics Building Materials Co., Ltd.
4. Core Material: Medium-Density Fibreboard (MDF), MgO, flame retardant
5. Panel Thickness: 12/15/18 mm
6. Standard Panel Dimensions: 600x1200mm, 600x600mm
7. Surface Finish: Natural Wood Veneer and Melamine
8. Hole Diameter: 0.5,1.0, 1.5, 2.0, 6.0 mm Customizable; exact diameter to be confirmed
9. Perforation Pattern: The distance between each holes can be 8,16,32mm while the diameter of each holes can be 1,2,6,8,mm etc. Some of the popular patters are 16/16/6, 32/32/6, 32/32/8, 8/8/1, 8/8/2 etc. 1 mm or 2 mm holes are micro holes which involve hightercost due to efficiency and technical reasons. Custom options subject to design and production requirements
10. Acoustic Performance (NRC): Target range of 0.70–0.95; verification required against the applicable acoustic test report and complete installation system
11. Fire Classification: B-s1,d0 stated as the target classification; confirmation required from the applicable fire test report and product configuration
12. Acoustic Backing: Acoustic fleece, fiberglass, or mineral wool may be specified depending on the tested system and project requirements
13. Customization Options: Hole diameter, perforation layout, veneer selection, panel dimensions, edge details, and acoustic backing, subject to technical feasibility

Key Product Features and Benefits

* Effective Acoustic Treatment: Helps control sound reflections and reverberation when designed with an appropriate acoustic backing system.
* Natural Wood Appearance: Creates a warm, professional, and premium interior finish.
* Custom Perforation Design: Allows hole diameter and layout to be tailored to architectural requirements.
* Large Panel Format: The 1200 × 2400 mm format supports efficient coverage of larger wall and ceiling areas.
* Versatile Applications: Suitable for educational, corporate, entertainment, and public buildings.
* Project-Based Customization: Supports coordination with architects, acoustic consultants, interior contractors, and procurement teams.

Typical Project Applications

1. School classrooms, lecture halls, and university auditoriums.
2. Corporate offices, meeting rooms, and conference centers.
3. Cinemas, theaters, and multipurpose halls.
4. Hotels, commercial buildings, and public interiors.
5. Recording and presentation spaces requiring coordinated acoustic treatment.

Customized Acoustic Panel Solutions by Hui Acoustics

Hui Acoustics supplies decorative and functional acoustic panel solutions for commercial interiors and large-scale construction projects. Contact our team to discuss panel specifications, veneer finishes, perforation designs, acoustic performance requirements, technical documents, samples, and project quotations.
